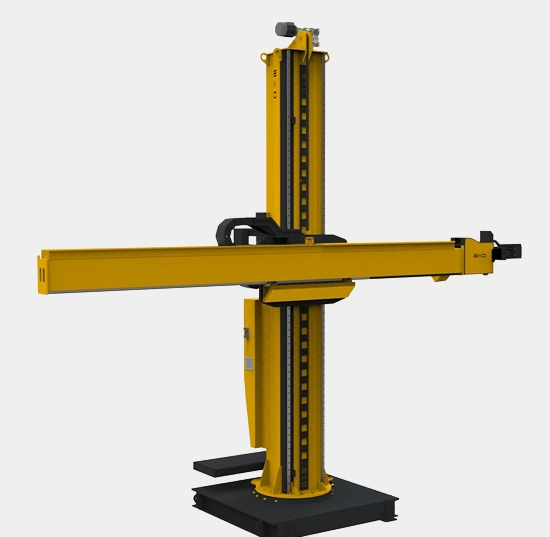

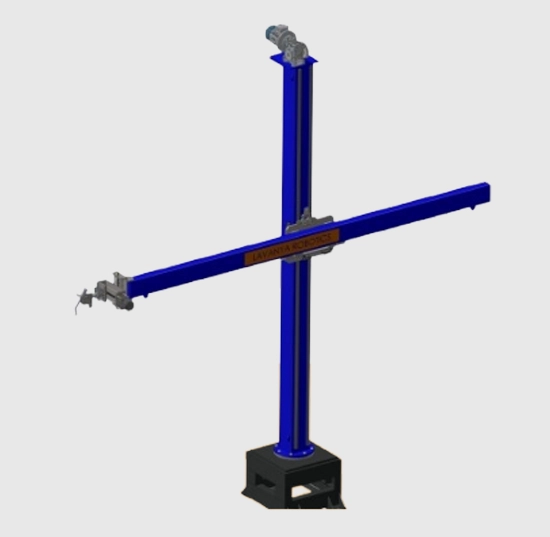

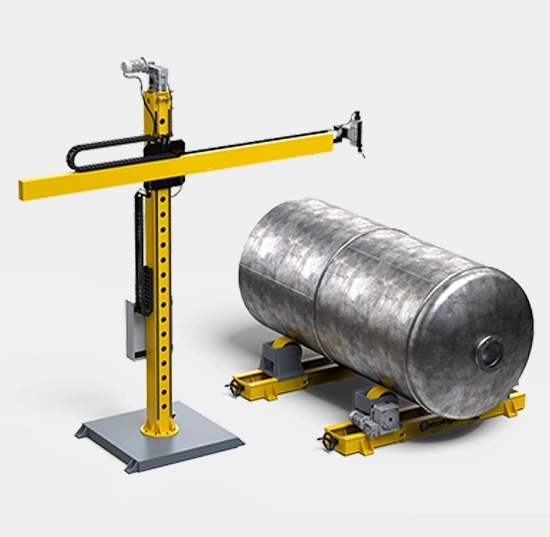

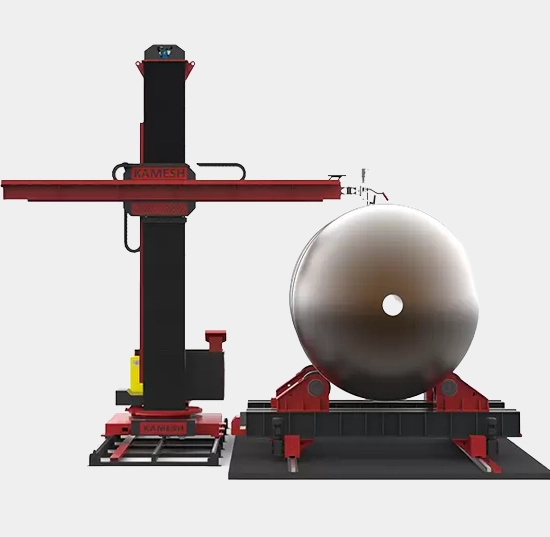

Column & Boom Welding Systems

Automated Solutions for Precision Heavy-Duty Welding

LM Guides: Vibration-free movement for higher weld quality
Speed Control: VFD-based speed control with acceleration and deceleration to avoid jerks during start and stop
Helical Rack Gears: Smooth and silent operation with enhanced rigidity and life
Digital Pendant Remote: Remote with digital display to set movement speed precisely
Motors: 3-phase VFD-controlled industry-standard Greaves motors

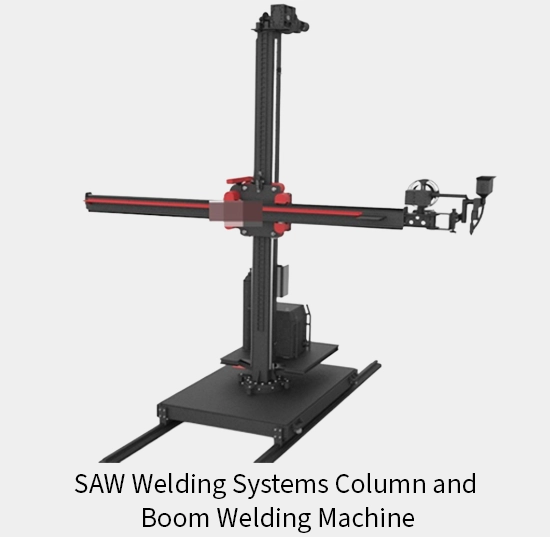

Multi-process compatibility: Works with MIG, TIG, and SAW welding processes
3 Series: Available in 3 variants to suit different application needs
MINI CNB series: Small, compact, portable, and economic. Works with MIG/TIG welding

Enquiry now Whatsapp Now

Technical Specifications

Model	Size (m)	Vertical Stroke (mm)	Horizontal Stroke (mm)	Elevation Speed (m/min)	Traverse Speed (m/min)	Max Load (kg)	Column Rotation	Antifall Safety Lock
CNB-1x1	1x1	1000	1000	0.15-1.5	0.15-1.5	30	Fix/Manual Rotation	No
CNB-1.5x1.5	1.5x1.5	1500	1500	0.15-1.5	0.15-1.5	30	Fix/Manual Rotation	No
CNB-2x2	2x2	2000	2000	0.15-1.5	0.15-1.5	30	Fix/Manual Rotation	No
CNB-2x2	2x2	2000	2000	0.15-1.5	0.15-1.5	80	Fix/Manual Rotation	No
CNB-3x3	3x3	3000	3000	0.15-1.5	0.15-1.5	80	Manual/Motorised	Yes
CNB-4x4	4x4	4000	4000	0.15-1.5	0.15-1.5	80	Manual/Motorised	Yes
CNB-5x5	5x5	5000	5000	0.15-1.5	0.15-1.5	80	Manual/Motorised	Yes
CNB-3x3	3x3	3000	3000	0.15-1.5	0.15-1.5	200	Manual / Motorised	Yes
CNB-4x4	4x4	4000	4000	0.15-1.5	0.15-1.5	200	Manual / Motorised	Yes
CNB-5x5	5x5	5000	5000	0.15-1.5	0.15-1.5	200	Manual/Motorised	Yes
CNB-6x6	6x6	6000	6000	0.15-1.5	0.15-1.5	200	Manual / Motorised	Yes
CNB-7x7	7x7	7000	7000	0.15-1.5	0.15-1.5	200	Manual / Motorised	Yes

Note: Continuous development entitle us to change/upgrade/modify specifications without any notice.
Kindly confirm specifications while placing order with us.
